1/4 x 3 Wedge Bolts 316 Stainless Steel |
|
 |
|
The 316 Stainless Steel Wedge-Bolt anchor is a one piece, heavy duty screw anchor with a
finished hex head. It is simple to install, easy to identify, fully removable and vibration resistant.
The Wedge-Bolt has many unique features and benefits that make it well suited for many
applications, both indoors and out. Optimum performance is obtained using a combination of
patented design concepts. The steel threads along the anchor body self tap into the hole during
installation and provide positive keyed engagement. The benefit to the designer is higher load
capacities, while the benefit to the user is ease of installation. The Wedge-Bolt can be installed
with either a powered impact wrench or conventional hand socket.

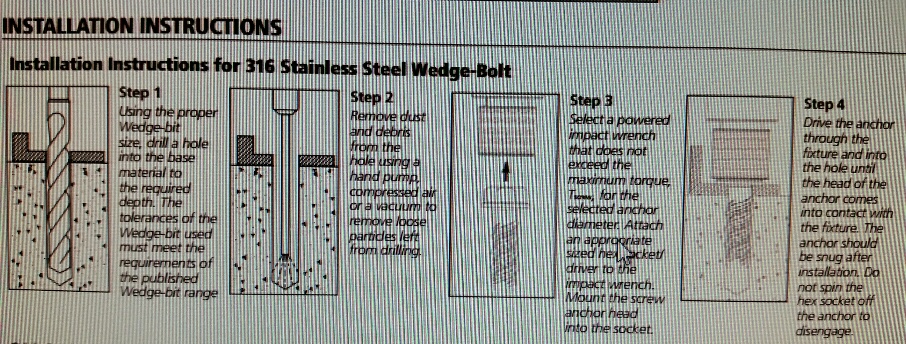

316 Stainless Steel Wedge-Bolt screw anchors are designed to be used with a matched tolerance
Wedge-Bit for optimum performance. The Wedge-Bolt works in fixture clearance holes that are
1/16" over nominal, which is typical of standard fixture holes used in steel fabrication.
|
|
